Schedules

Holds a collection of schedules. Schedules are executed by a scheduler service.
Schedule can bse used for different use cases.
The most famous one is turn ON a light at specific time and turn OFF a light at a specific time.
But in MyController it is not limited to lights. You can control variety of resources.

Schedule has a different sections. All the sections are explained here.

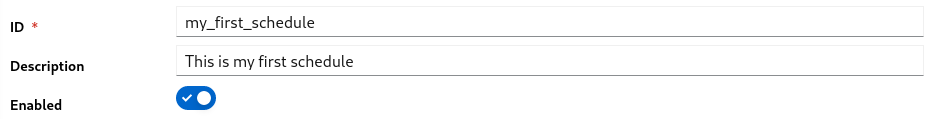

Identity

Form View

YAML View

id: my_first_schedule # (1)
description: This is my first schedule # (2)
enabled: true # (3)

1. id - should be a unique identifier
2. description - add description about this schedule
3. enabled - enable/disable this schedule

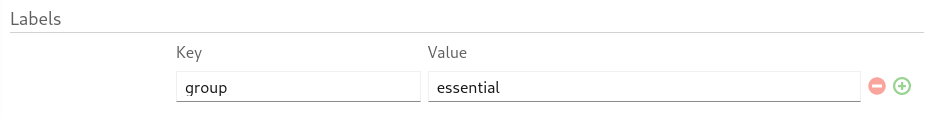

Labels

You can add any number of labels. Labels can be used to filter a group of schedule.
Labels can be used to perform an action on a group schedules.

Form View

YAML View

labels:
  group: essential

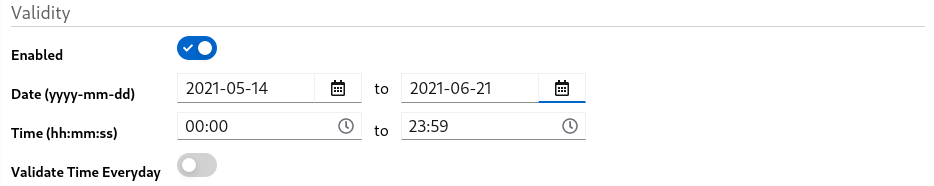

Validity

Validity is a special feature. You can control when this schedule should be effective.
All the fields are optional. By omitting a field gives different meanings

To get activate this feature validity should be enabled

Date and Time

Based on the given fields, validity reacts as follows,

• If non of the fields entered - valid for all the time.

• date.from - schedule will be valid from the given from date.
  There is no from time entered here, but from date is available. Hence from.time will be calculated as 00:00:00
  Example: 2021-09-16 becomes 2021-09-16 00:00:00


• date.to - schedule will be valid till the given to date.
  There is no to time entered here, but to date is available. Hence to.time will be calculated as 23:59:59
  Example: 2021-09-24 becomes 2021-09-24 23:59:59


• date.from, time.from - schedule will be valid from the given from date and from time.

• date.to, time.to - schedule will be valid till the given to date and to time.

• date.from, date.to, time.from, time.to - schedule can be valid between the from date/time ~ to date/time.

• validateTimeEveryday => Disabled - valid exactly from date/time ~ to date/time.
  Example: 2021-09-16 11:15:00 to 2021-09-24 19:00:00

• validateTimeEveryday => Enabled - between these date and the time valid for every day.
  Example: between2021-09-16 to 2021-09-24 - time is valid for every day between 11:15:00 to 19:00:00

Form View

YAML View

validity:
  enabled: true
  date:
    from: '2021-05-14'
    to: '2021-06-21'
  time:
    from: '00:00'
    to: '23:59'
  validateTimeEveryday: false

Schedule Type

Schedule supports different types.

• Repeat
• Cron
• Simple
• Sunrise
• Sunset

Repeat

Repeat is a super simple schedule.

• Executes the schedule on the specified interval till it reaches the repeat count.
• Set repeat count to 0 to keep on repeating.

Cron

Cron is a time-based job scheduler in Unix-like computer operating systems.
In MyController in addition to that, it supports seconds field.
Refer Cron wikipedia page to know more about cron.

┌───────────── second (0 - 59)
| ┌───────────── minute (0 - 59)
│ | ┌───────────── hour (0 - 23)
│ | │ ┌───────────── day of the month (1 - 31)
│ | │ │ ┌───────────── month (1 - 12)
│ | │ │ │ ┌───────────── day of the week (0 - 6) (Sunday to Saturday;7 is also Sunday on some systems)
│ | │ │ │ │
│ | │ │ │ │
│ | │ │ │ │
* * * * * *

The first field second is optional, you can omit it.
Also supports @yearly, @monthly, @weekly, @daily (or @midnight), @hourly

Simple

Simple is a friendly schedule type.
It supports different type of frequencies.

• Daily
• Weekly
• Monthly
• On Date

Schedule executes on the specified time, if the day meets the specified frequency.
Time can be specified in the format of hh:mm:ss. hours should be in 24 hours format
Examples:

• 05:00:00 - 5 AM
• 12:30:20 - 12:30:20 PM
• 17:15:00 - 5:15 PM

Frequency - Daily

In this mode you can restrict the schedule to the selected week days.

• Possible select multiple days of a week.
• Schedule executes on the selected days of the week.

Frequency - Weekly

In this mode you can restrict the schedule to particular week day.

• Select a day in week.
• Schedule executes on the selected day of the week.
• In simple words, only once in a week.

Frequency - Monthly

In this mode you can restrict the schedule to particular day of month.

• Select a date in a month
• Schedule executes on the selected date of the month
• In simple words, only once in a month

Frequency - On Date

In this mode you can restrict the schedule to particular date and time.

• This schedule executes only once in a life time.

Sunrise

Sunrise works similar to Simple schedule, expect the time part.
Here explained only about the time part. refer Simple schedule for other options.

Based on the GEO Location configured for the system, Sunrise time will be calculated. This calculation happens every day at midnight of the system timezone.

Offset

Offset used to calculate the exact time to execute the schedule.
Offset is a time duration. Refer duration guide for the detailed information.

Examples:

• 10m - executes 10 minutes after the sunrise time
• -10m - executes 10 minutes before the sunrise time
• 1h20m - executes 1 hour and 20 minutes after the sunrise time
• -1h20m - executes 1 hour and 20 minutes before the sunrise time

Sunset

Sunset works similar to Simple schedule, expect the time part.
Here explained only about the time part. refer Simple schedule for other options.

Based on the GEO Location configured for the system, Sunset time will be calculated. This calculation happens every day at midnight of the system timezone.

Offset

Offset used to calculate the exact time to execute the schedule.
Offset is a time duration. Refer duration guide for the detailed information.

Examples:

• 10m - executes 10 minutes after the sunset time
• -10m - executes 10 minutes before the sunset time
• 1h20m - executes 1 hour and 20 minutes after the sunset time
• -1h20m - executes 1 hour and 20 minutes before the sunset time

Load variables

Load variables is an optional configuration.
Follow Load Variables Guide for the detailed configuration.

Use variables when you want to,

• play with Javascript
• enable or disable Parameters to handler

Load Custom Variables

Sometimes you may want to do some calculations or based on a value you want to set something, In those cases Load Custom Variables will be used.

Types

• None
• Javascript
• Webhook

None

Whe you do not want to use Load Custom Variables feature, use None option.

Javascript

Follow Javascript Guide for the details.

Webhook

Follow Webhook Guide for the details.

Parameters to Handler

Follow Parameters to Handlers Guide for the detailed configuration.

Notify Handlers

Follow Notify Handlers Guide for the detailed configuration.
